HTML & CSS

Martin Hutchings

width:200px

Day Seven

  • Tables
  • iFrames
  • Forms

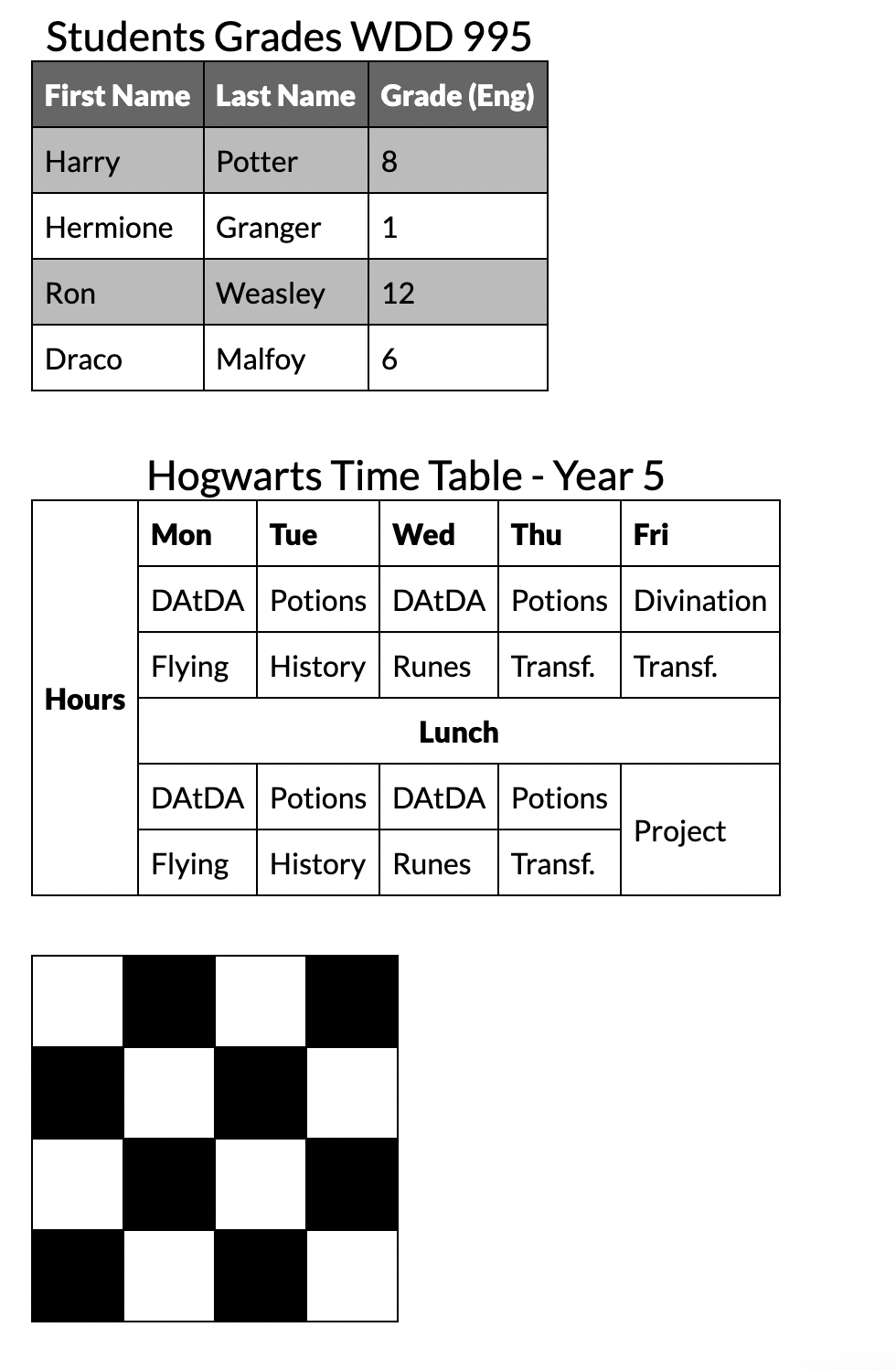

Tables

Foo

Syntax

<table>
  <caption>Student Grades WDD 921</caption>
  <tr>
    <th>First Name</th>
    <th>Last Name</th>
    <th>Grade</th>
  </tr>
  <tr>
    <td>Harry</td>
    <td>Potter</td>
    <td>10</td>
  </tr>
  <tr>
    <td>Hermione</td>
    <td>Granger</td>
    <td>1</td>
  </tr>
  <tr>
    <td>Ron</td>
    <td>Weasley</td>
    <td>12</td>
  </tr>
</table>

w:450

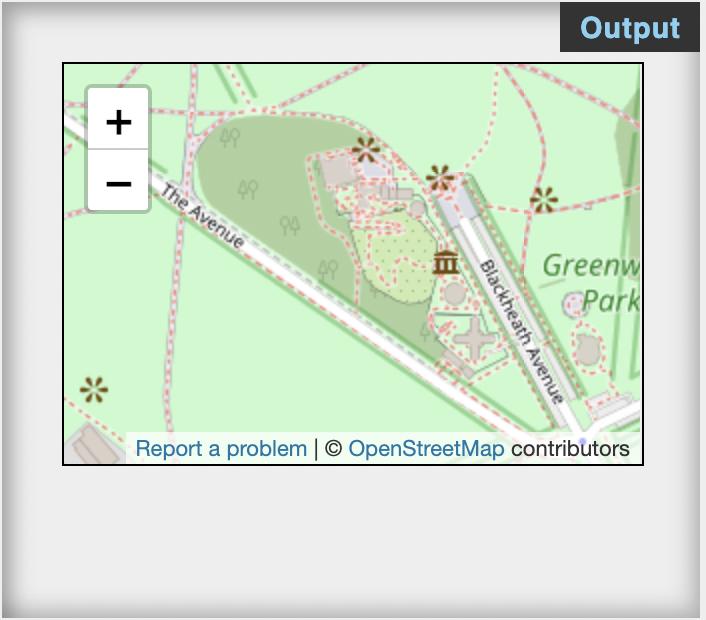

iFrames

<iframe id="inlineFrameExample"
    title="Inline Frame Example"
    width="300"
    height="200"
    src="https://www.openstreetmap.org/export/embed.html?bbox=-0.004017949104309083%2C51.47612752641776%2C0.00030577182769775396%2C51.478569861898606&layer=mapnik">
</iframe>

w:500

Forms

Foo

<form>, <input> and <label>

  • All form elements are contained in a <form> tag
  • All <input> elements in a form should have a corresponding <label> to be accessible.
  • There are multiple types of input elements that fit different purposes.

<input> types

  • text : first name, last name
  • email : email validation
  • password : hides password field using *****
  • tel : telephone numbers
  • url : a link to a website
  • radio : radio button (has to have a name attribute identical to the other radio button)
  • checkbox : checkbox, does not depend on other checkboxes
  • number : can have a min and max attribute

<input> types

  • <selection>
    • contains <option>s
    • not actually an input
  • date : provides a date picker in modern browsers
  • color : provides a color picker in modern browsers
  • time : provides a time picker in modern browsers
  • <input list="foo">
    • is bound to a <datalist id="foo">
    • the list can have multiple <option>s
  • <selection>
    • contains <option>s
    • not actually an input
  • date : provides a date picker in modern browsers
  • color : provides a color picker in modern browsers
  • time : provides a time picker in modern browsers
  • <input list="foo">
    • is bound to a <datalist id="foo">
    • the list can have multiple <option>s
  • <textarea> : Multiple lines of text

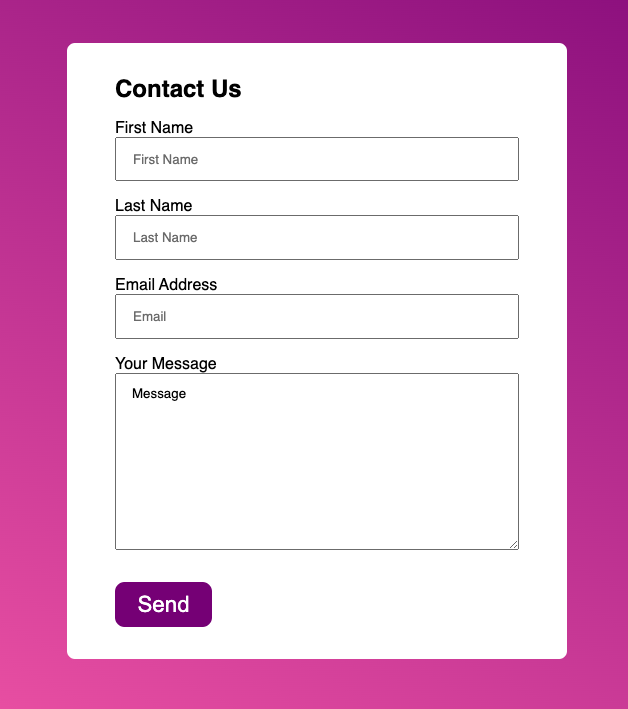

Example:

<form>
  <label for="first-name">First Name</label>
  <input type="text" id="first-name">
  <label for="last-name">Last Name</label>
  <input type="text" id="last-name">
  <label for="email">Email Address</label>
  <input type="email" id="email">
  <label for="message">Your Message</label>
  <textarea name="message" id="message" cols="30" rows="10"></textarea>
</form>

foo

Homework
